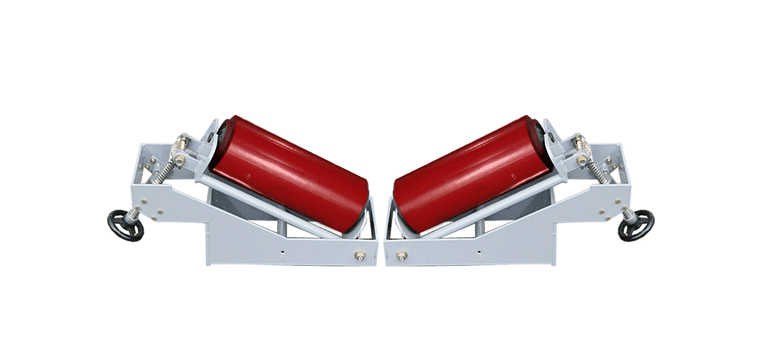

Skew preventive push Roller

• It prevents the skew of belt and reduces drops of ore.
• Push Roller is specially designed to cope with the force pressed when belt’s skew is adjusted so can be used for long period – 2 years. (existing ordinary roller is used for 6 months)
• As it is installed on the upper part of return belt, adjusting skew after visual check while machine is running is possible.
• Can be installed without being limited by the width of belt.
• Prevents skew by interaction with return roller.
• Angle of Push Roller should be adjusted according to the degree of skew.
• Disassembled installation and repair is easy

※ Size varies depending on installation site and moving direction of belt (one way or bidirectional).

---

Product Name and Specification

<Skew preventive Push Roller: Patent no. 0502959>

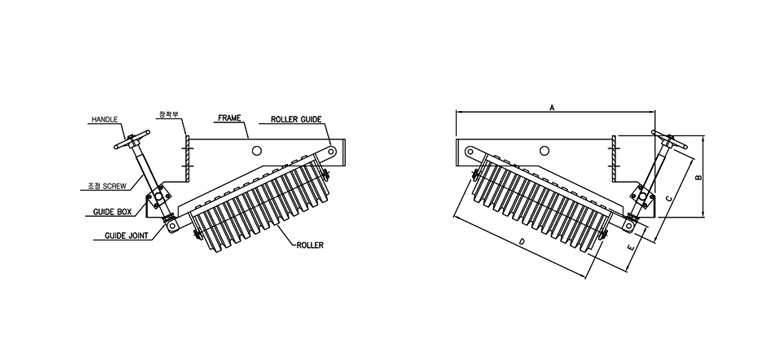

Skew preventive push Roller Table

Model	ROLLER	A	B	C	D	E	Frame
LPR-400	CRI 600-1	400	205	250	240	Ø90	6T
LPR-500	CRI 600-1	400	205	250	240	Ø90	6T
LPR-600	CRI 600-2	400	205	250	240	Ø115	6T
LPR-750	CRI 750	450	205	250	295	Ø115	6T
LPR-900	CRI 900	490	205	250	345	Ø115	6T
LPR-1050	CRI 1050	560	230	250	410	Ø140	6T
LPR-1200	CRI 1050	560	230	250	410	Ø140	6T
LPR-1400	CRI 1050	560	230	250	410	Ø140	6T
LPR-1600	CRI 1200	610	260	250	460	Ø140	8T
LPR-1800	CRI 1200	610	260	250	460	Ø140	8T
LPR-2000	CRI 1400	780	340	250	540	Ø166	8T
LPR-2200	CRI 1400	780	340	250	540	Ø166	8T

* Dimensions may vary depending on site conditions..
