• Automatic Aligning Device
• Skew preventive Roller
• Skew preventive push Roller

---

SUMMARY OF Automatic Aligning Device

automatic Aligning Device for conveyor belt prevents conveyor belt from excessively meandering to the left and right and rolling because of its long length.

EFFECT OF Automatic Aligning Device

• There is no lock as foreign substances cannot infiltrate into the central axis.
• There is no shaking of turning base as connection axis is specially designed.
• Return roller bracket and guide roller bracket are in one body type.
• Ores cannot be sandwiched between belt and base as restoration apparatus which moves return roller up and down is applied.
• Installation without using equipment is possible as it is installed on the upper part of belt.
• Can inhibit rolling of belt with use of pressure roller which presses the upper side of the lower part of belt.
• Carries materials stably in addition to preventing early abrasion of return roller.
• Incidental effect is that meandering of belt can be inhibited by the friction force between belt and pressure roll.

---

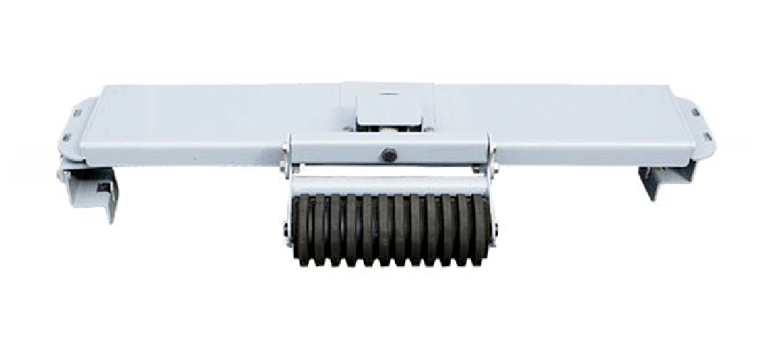

Product Photo

<Automatic Aligning Device: Patent no. 0497482>

Name of Products

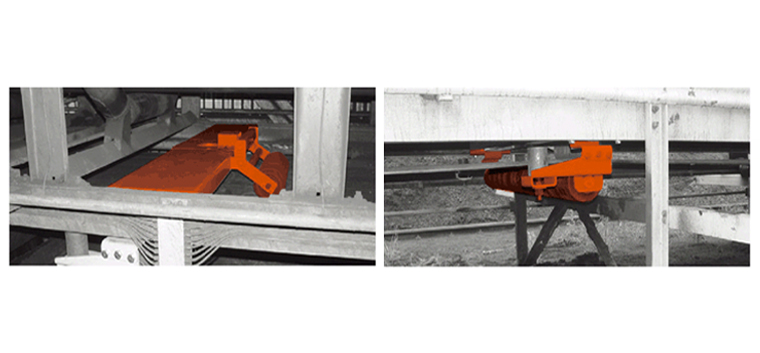

<Insatallation case of Automatic Aligning Device>

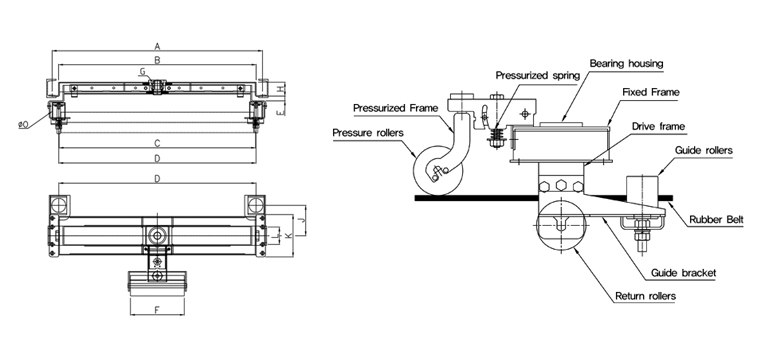

Impact Bar Table

MODEL	SYMBOL
	A	B	C	D	E	F	G	H	J	K	L	ØO	O
LSA-750	1070	926	936	938	24.5	CRI-750	30207A	56	171	219	97	76.3	7.8
LSA-900	1190	1070	1037	1038	24.5	CRI-900	30207A	56	180	229	97	76.3	7.8
LSA-1050	1364	1240	1186	1202	24.5	CRI-1050	30207A	40	171	250	97	76.3	7.8
LSA-1200	1490	1394	1340	1356	24.5	CRI-1200	30207A	40	196	270	97	76.3	12.1
LSA-1400	1730	1634	1560	1566	28	CRI-1400	30208A	46	221	284	120	89.1	15.4
LSA-1600	1930	1798	1764	1768	28	CRI-1600	32210A	52	221	321	120	89.1	19.1
LSA-1800	2053	1946	1944	1974	32	CRI-1600	32210A	111	255	354	241	89.1	24.5
LSA-2200	2620	2460	2446	2360	43	CRI-2200	32211A	60	255	365	120	89.1	24.5
