SUMMARY OF UL Impact Bar

UL IMPACT BAR on behalf of the Impact Roller for conveyor belt supports belt and mitigate the impact so that it serves to prevent damage of the conveyor belt

EFFECT OF UL Impact Bar
  • Shock-absorbent increases less damage the conveyor belt.
  • Low-friction belt drive because almost no resistance.
  • Easy to install and maintain.
  • Transportation of water to prevent OVER FLOW.

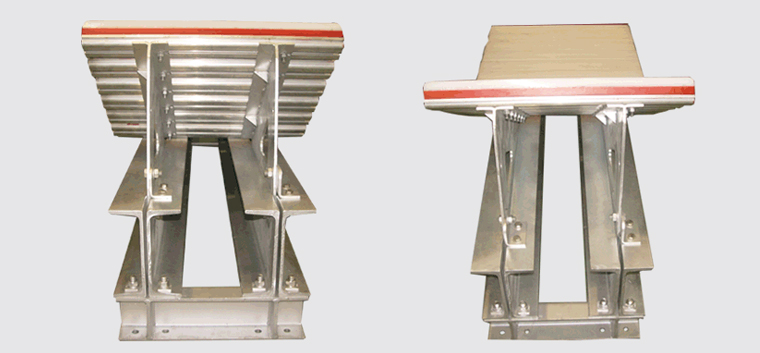

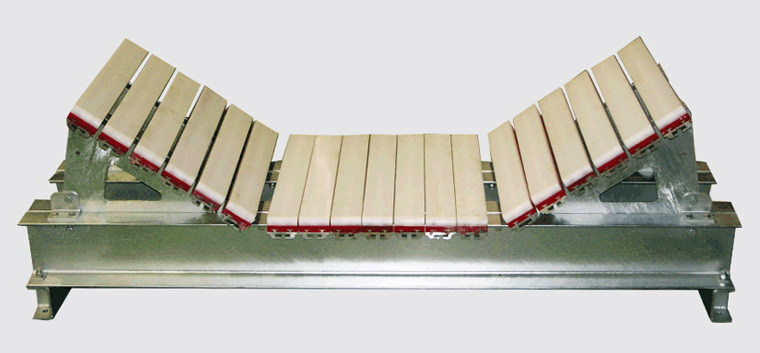

Product Photo
Impact Bar
Product Specification
Impact Bar Impact Bar Impact Bar Impact Bar Impact Bar

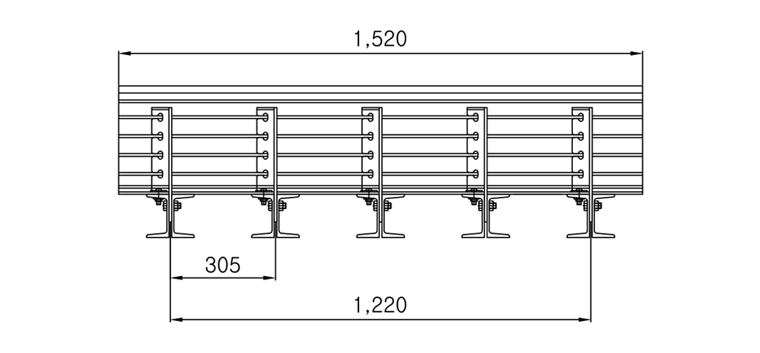

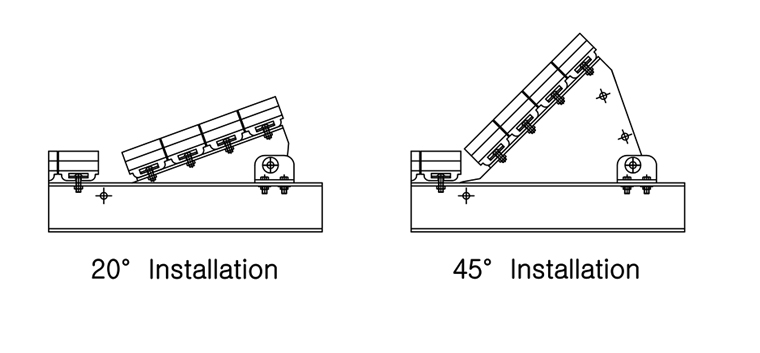

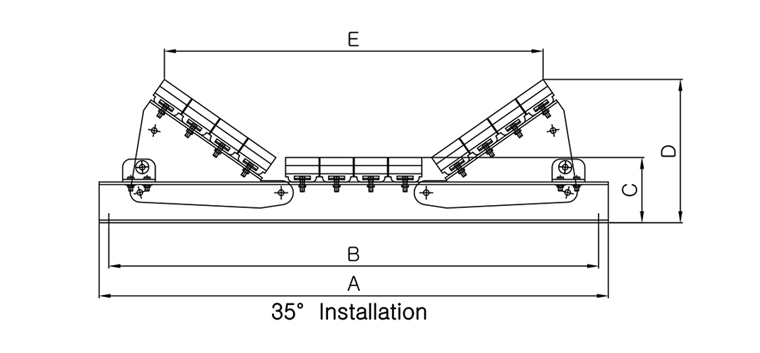

Dimensional details
Impact Bar Table
BELT WIDTH Standards Dimensions(mm) NUM OF BARS
A B C D E
20° 35° 45° 20° 35° 45°
750 LUIB BW-750 1040 1090 207.5 301 365 403 836 752 691 7
900 LUIB BW-900 1190 1240 207.5 318 393 438 946 799 811 9
1050 LUIB BW-1050 1340 1390 220 250 439 491 1124 1016 931 10
1200 LUIB BW-1200 1490 1540 220 369 470 527 1267 1149 1050 12
1400 LUIB BW-1400 1730 1790 333 508 627 697 1490 1370 1261 13
1600 LUIB BW-1600 1930 1990 333 535 673 754 1720 1581 1454 15
1800 LUIB BW-1800 2220 2280 363 589 743 833 1922 1766 1623 18
